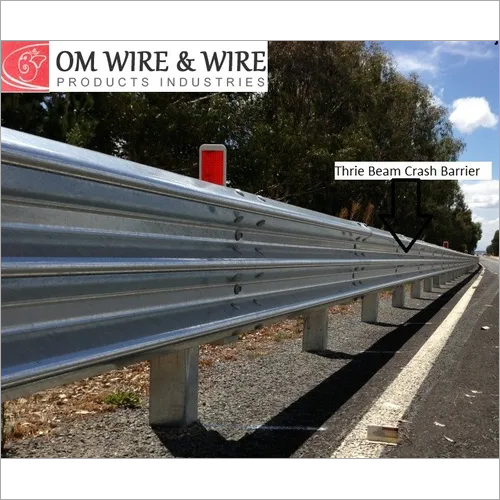

Thrie Beam Highway Crash Barrier

• Simple to install
• Able to withstand high impact
• High durability
• Dimensional accuracy

Metal Crash Barriers (Guard Rails) are believably a thing most of the people don't think about, which is, until these save their lives. These are the proven road safety system, which set about design, installation and manufacturing of wide ambit of Guard Rails under rigorous quality control.

The basic function of these products is to assimilate the impact energy of the hitting vehicle thus lessening the level of endangerment and impairment to the vehicles and their passengers. Besides, these prevent the vehicle from rolling down the high mounds and swerving off the carriage way. Consequently, Guard rails find their typical applications on Highways, Flyovers and Bridges.

Based on the guidance contented by Ministry of Surface Transport (MOST) and different international specifications such as AASHTO M 180, OM Wire & Wire Products Industries provide "Thrie" beam and "W" beam type steel crash barrier systems.

• Cold Roll formed
• Raw material : ST 42/IS 5986 Fe 410/510 Grade steel
• Accessible in assorted lengths and dimensions to match client requirements.
• Hot Dip Galvanized (550 GSM minimum)

Thickness	Effective length	Overall length	Section area (cm2)	Moment of inertia		Section Modulus
				I-xx (cm2)	l-yy(cm4)	Z-xx (cm3)	Z-yy(cm3)
3.00mm	4000mm	4318mm	23.43	5640.3	170.75	223.82	40.08

Usage/Application	In Highway
Position	Exterior
Material	MS
Weight	34 kg
